The 2026 Ford Ranger FX4 Off-Road Package adds an electronic-locking rear differential, all-terrain tires, off-road tuned shocks, and Trail Control to the Ranger’s capable foundation. The FX4 package transforms the base Ranger’s 9.3-inch ground clearance and 7,500-lb towing rating into a purpose-built trail machine. This page covers exactly what the FX4 package includes, which trims carry it, and how to find one at Greg Hubler Ford.
The FX4 Off-Road Package is Ford’s answer to buyers who want genuine trail capability without stepping up to the full Ranger Raptor. It bundles hardware and software upgrades that address the real weak points of a stock mid-size truck on loose terrain: traction, ground management, and driver confidence on steep or uneven surfaces.
The package centers on four core upgrades: off-road tuned shocks, an exposed steel bash plate, an electronic-locking rear differential, and all-terrain tires. Ford adds Trail Control to that hardware stack, giving the driver a tool that handles throttle and braking automatically on technical terrain so attention can stay on steering inputs. An off-road screen on the center display rounds out the package with live pitch and roll angle readouts.
For drivers around Muncie who spend weekends on gravel roads, forest paths, or muddy job sites, the FX4 package closes a meaningful gap between a pavement-focused base truck and a purpose-built off-road machine.
When one rear wheel loses traction, an open differential sends power to the path of least resistance, which is usually the spinning wheel. The electronic-locking rear differential eliminates that problem by mechanically coupling both rear wheels so they rotate at the same speed. The result is that power reaches the wheel with grip rather than the one without it.

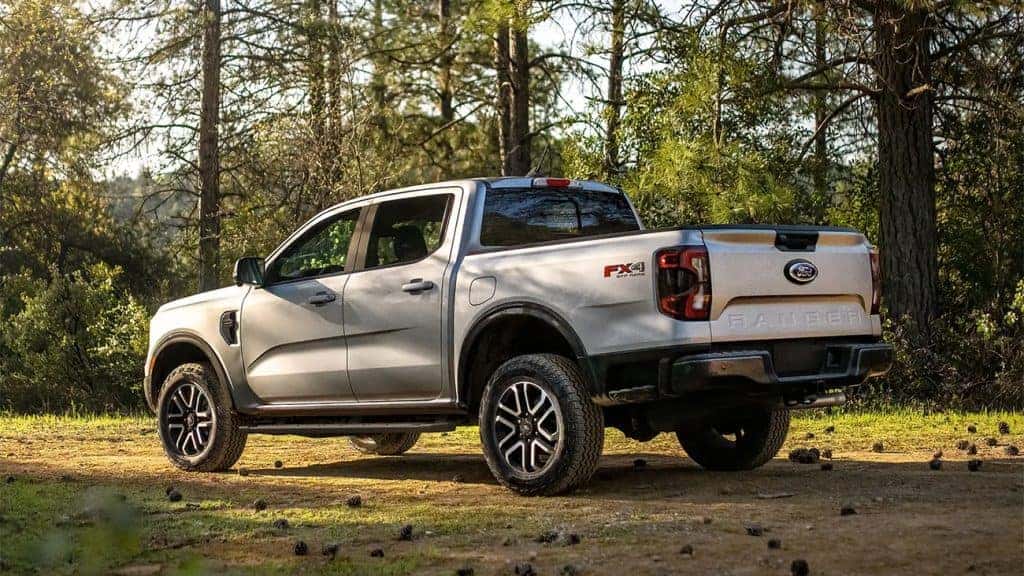

The Ranger’s standard shocks are calibrated for ride quality on paved roads. The FX4 package replaces that calibration with shocks tuned specifically for low-speed articulation and impact absorption over rocks, ruts, and washboard surfaces. The outboard-mounted rear shocks and independent front suspension work together to keep tires in contact with irregular terrain rather than bouncing free of it.
Approach angles matter off-road, but so does protecting what sits behind the front bumper. The steel bash plate shields the engine and drivetrain components from rock strikes and debris impacts during technical maneuvering. It is exposed, meaning it is designed to take hits rather than be hidden behind fragile plastic cladding.
Trail Control functions like a low-speed cruise control built specifically for off-road use. It manages the Ranger’s throttle and braking inputs automatically, freeing the driver to concentrate entirely on steering through obstacles. Ford specifies it operates at speeds up to 20 MPH in two-wheel or four-wheel drive, up to 9 MPH in four-wheel drive low, and up to 5 MPH in reverse. Because the system handles the throttle modulation that causes wheel spin on slippery surfaces, it reduces the skill barrier for confident off-road driving significantly.
The center display’s off-road screen shows real-time pitch and roll angles while the truck is moving over terrain. Drivers can monitor how far the truck is tilting front-to-back or side-to-side, which is directly useful when navigating cambers and steep grades where judgment by feel alone can be unreliable.
All-terrain tires are the connection point between every other off-road upgrade and the ground beneath them. The FX4 package includes all-terrain tires with a tread pattern designed to clear mud and debris while retaining enough structure for stable highway driving. Without them, upgraded shocks and a locking differential would still be limited by a tire that breaks traction too easily.
The FX4 Off-Road Package is available on the XL, XLT, and Lariat trims. Each brings a different base feature set, so the combination of the package with a particular trim level produces a distinct capability profile.
The XL is the Ranger’s work-focused entry point. Adding FX4 to an XL produces a straightforward off-road truck without the added cost of premium interior features. Buyers who want maximum trail hardware at the most accessible price point typically look here. The XL SuperCrew is available in both 2WD and 4WD configurations, and the FX4 package pairs logically with the 4WD variant.
The XLT adds meaningful technology over the XL, including BLIS Blind Spot Information System with Cross-Traffic Alert and Trailer Coverage as standard, a wireless phone charging pad available, a 120-volt household-style outlet available, and the SOS Post-Crash Alert System as standard. Pairing those features with the FX4 package produces a truck that handles technical terrain and keeps the driver connected and informed. The XLT also opens access to the Digital Rearview Mirror and Adaptive Cruise Control with Speed Sign Recognition.
The Lariat is where the FX4 package meets the Ranger’s most refined interior. Standard features on the Lariat include the Bang and Olufsen 10-speaker sound system, power heated front seats with driver memory, and the 360-Degree Camera System. That camera system has direct off-road utility: the ability to see all four corners of the truck on-screen during tight maneuvering adds precision that complements Trail Control’s throttle management. Zone Lighting, which illuminates the truck’s perimeter after dark, is also standard on the Lariat and useful for loading gear on a trail at night.
The Raptor sits above all FX4 trims and uses a completely separate off-road platform with FOX 2.5-inch Live Valve Racing Shocks and Watts-link rear suspension. The Raptor is not an FX4 truck; it is a different category.
The FX4 package matters most in situations where stock trucks stall out. Consider a few scenarios that owners around Muncie regularly face:
A boat ramp launch on a wet clay surface becomes manageable because the locking rear differential prevents the inside wheel from spinning while the outside wheel sits in shallower water. The truck drives up the ramp rather than digging in.
A gravel two-track leading to a hunting or fishing spot involves loose material and occasional soft shoulders. Trail Control holds a steady, slow speed without the driver pumping the throttle, which prevents the momentum surges that cause slides on loose gravel.
A job site with rutted, uneven ground benefits from the off-road tuned shocks keeping the bed level enough to avoid shifting loads, and the bash plate protects the underside if the truck has to cross a berm or debris pile.
The off-road screen’s pitch and roll data is useful whenever the driver needs to judge whether a slope is within a safe tilt threshold before committing to a descent or traverse. That real-time number is more reliable than estimation by feel, particularly on side-hills.
On the return trip home, the all-terrain tires and standard 21 city / 25 hwy MPG fuel economy for 2WD with the 2.3L EcoBoost mean the FX4 Ranger is not punishing to drive every day. The package does not sacrifice highway manners to gain trail capability.
The mid-size truck segment offers several off-road packages, and the FX4 competes on a well-defined set of criteria.
The Ranger’s 9.3 inches of ground clearance is a genuine differentiator in the segment. Paired with the 30.2-degree approach angle and 25.8-degree departure angle on the standard Ranger platform, the FX4 package builds on geometry that is already competitive.
The locking rear differential is a meaningful hardware distinction. Some competing off-road packages rely entirely on brake-based traction control to simulate locking behavior, which generates heat and is less effective on sustained technical terrain. A mechanical locker holds both wheels without generating the heat that limits brake-based systems.
Trail Control is Ford’s direct equivalent to comparable low-speed crawl systems in the segment. Its 20 MPH upper limit in 4WD high and the 9 MPH ceiling in 4WD low position it for the same slow, technical driving scenarios those systems target.
The FX4 package does not include the FOX Racing Shocks or Watts-link suspension of the Raptor, and buyers who want that level of hardware will need to step up to that model. The FX4 is positioned as the capability upgrade for buyers who want proven off-road hardware without the Raptor’s more specialized focus.
Greg Hubler Ford carries 2026 Ranger inventory across trim levels, including FX4-equipped builds. The right trim depends on which combination of trail hardware and cabin features matches your use. Whether the XL’s straightforward capability or the Lariat’s refined interior with FX4 hardware suits your situation, you can browse current availability online today.
The FX4 package includes off-road tuned shocks, an exposed steel bash plate, an electronic-locking rear differential, all-terrain tires, Trail Control, and access to the off-road screen on the center display.
The FX4 Off-Road Package is available on the XL, XLT, and Lariat trims. The Raptor uses a separate, higher-specification off-road platform and does not use the FX4 designation.
Trail Control manages the truck’s throttle and braking automatically during low-speed off-road driving so the driver can focus on steering. It operates at up to 20 MPH in two-wheel or four-wheel drive, up to 9 MPH in four-wheel drive low, and up to 5 MPH in reverse.

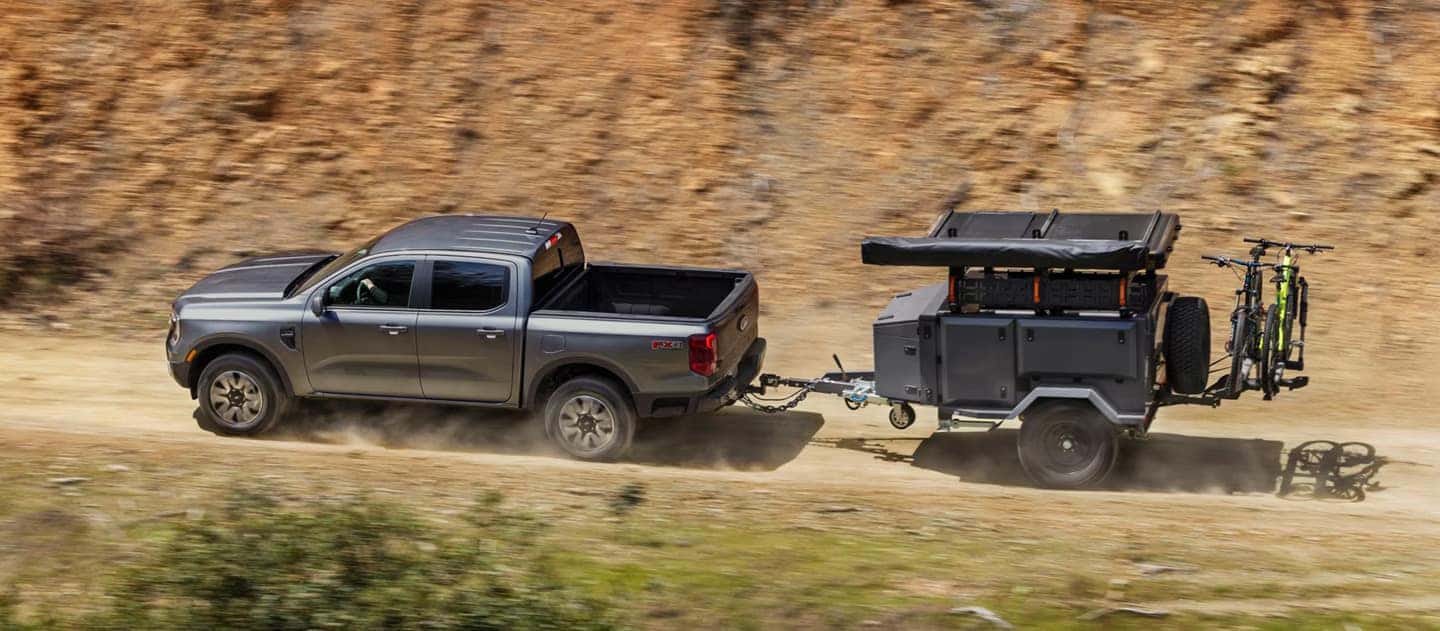

The Ranger’s maximum conventional towing rating of 7,500 lbs when properly configured with the available Trailer Tow Package applies to FX4-equipped trucks using the 2.3L EcoBoost in both 4×2 and 4×4 configurations.
The standard Ranger platform provides 9.3 inches of minimum running ground clearance. The FX4 package adds off-road tuned shocks and all-terrain tires on top of that base geometry.
No. Traction control uses the brakes to slow a spinning wheel, which generates heat and can be limited on sustained technical terrain. The electronic-locking rear differential mechanically couples both rear wheels to force equal rotation, which is more effective for extended low-traction situations.
The FX4 package itself does not carry a separate EPA rating. The 2.3L EcoBoost with 4WD is rated at 19 city / 24 hwy / 21 combined MPG. All-terrain tires can affect real-world economy slightly, but the rated figures apply to the 4WD Ranger platform.
